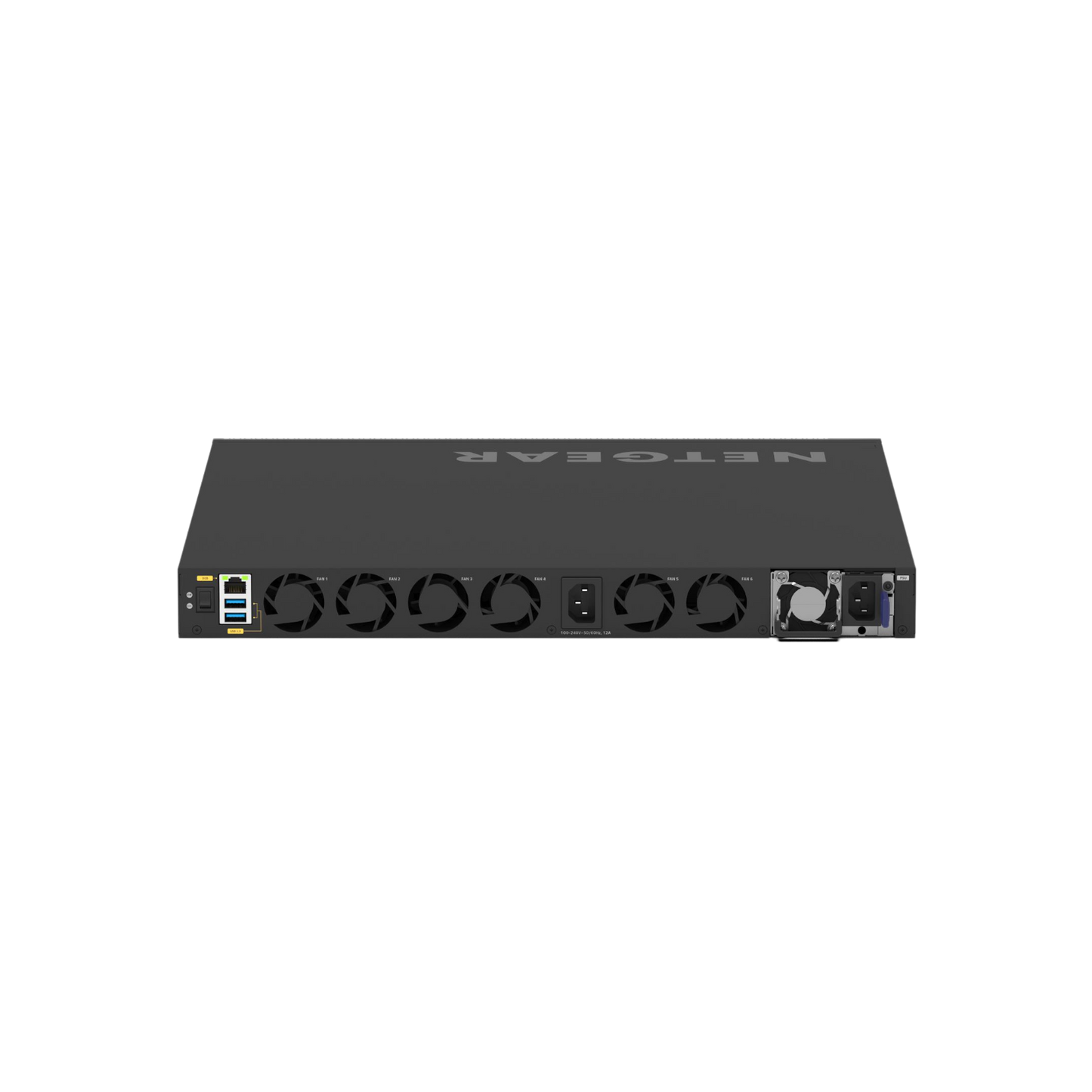

Switch zarządzalny Netgear VSM4320C 16xSFP28 4xQSFP

• Static
• Dynamic
• Voice
• MAC
• GVRP/GMRP
• Double VLAN mode
• Private VLANs

Auto-VoIP

Access Lists:

• L2 MAC, L3 IP and L4 Port ACLs
• Ingress
• Egress
• Time-based
• 802.3ad (LAG) for ACL assignment
• Binding ACLs to VLANs
• ACL Logging
• Support for IPv6 fields

DiffServ QoS:

• Edge Node applicability
• Interior Node applicability
• 802.3ad (LAG) for service interface
• Support for IPv6 fields
• Ingress/Egress

EEE 802.1p COS:

• 802.3ad (LAG) for COS configuration
• WRED (Weighted Deficit Round Robin)
• Strict Priority queue technology

Single Rate Policing:

• Committed Information Rate
• Committed Burst Size
• Excessive Burst Size
• DiffServ feature applied to class ma

• Successive Tiering (DOT1X
  MAB
  Captive Portal)
• DHCP Snooping
• Dynamic ARP Inspection
• IP Source Guard
• Network Storm Protection, DoS
• Broadcast, Unicast, Multicast DoS Protection
• Denial of Service Protection (control plane)
• Denial of Service Protection (data plane)
• DoS Attacks Protection
• CPU Rate Limiting
• ICMP throttling

• Management ACL (MACAL), Max Rules: 64
• Out of band Management
• Radius accounting
• TACACS+
• Malicious Code Detection

• IEEE 802.1Q VLAN Tagging
• Auto-Trunk
• Protocol Based VLANs: IP subnet
  ARP
  IPX
• Subnet based VLANs
• MAC based VLANs
• Voice VLAN
• Private Edge VLAN
• Private VLAN
• IEEE 802.1x
• Guest VLAN
• RADIUS based VLAN assignment via .1x
• RADIUS based Filter ID assignment via .1x
• MAC-based .1x
• Unauthenticated VLAN
• Double VLAN Tagging
• Enabling dvlan-tunnel makes interface
• Global ethertype (TPID)
• Interface ethertype (TPID)
• Customer ID using PVID
• GARP with GVRP/GMRP
• Multiple Registration Protocol (MRP)
• Multicast VLAN Registration Protocol (MVRP)
• MVR (Multicast VLAN registration)

L3 Services - Multicast Routing:

• IGMP Proxy
• MLD Proxy
• Any Source Multicast (ASM)
• Source Specific Multicast (SSM)
• Multicast streams routing between subnets, VLANs
• Multicast static routes (IPv4, IPv6)
• Neighbor discovery
• PIM-DM (Multicast Routing - dense mode)
• PIM-DM (IPv6)
• PIM-SM (Multicast Routing - sparse mode)
• PIM-SM (IPv6)
• PIM multi-hop RP support
• PIM Timer Accuracy
• PIM-SM Unhandled Events
• IPMC replication (hardware support)

L3 Services - DHCP:

• DHCP IPv4 / DHCP IPv6 Client
• DHCP IPv4 / DHCP IPv6 Server (Stateless, Stateful)
• DHCP Snooping IPv4 / IPv6
• BootP Relay IPv4 / IPv6
• DHCP Relay IPv4 / IPv6
• DHCP Relay Option 82 circuit-id and remote-id for VLANs
• Multiple Helper IPs
• Auto Install (DHCP options 66, 67, 150 and 55, 125)

L3 Services - Routing:

• Static Routing / ECMP Static Routing IPv4/IPv6
• Multiple next hops to a given destination
• Load sharing, Redundancy
• Default routes
• Static Reject routes
• Port Based Routing
• VLAN Routing
• 802.3ad (LAG) for router port
• VRRP IPv4
• Pingable VRRP interface
• VRRP Route/Interface Tracking
• Loopback Interfaces
• Tunnel interfaces IPv4 / IPv6
• Configured 6to4 tunnels
• Automatic 6to4 tunnels
• 6to4 Border Router
• RIP IPv4
• RIPv1/RIPv2
• Route Redistribution

SMTPE ST 2110:

• Boundary Clock mode (BC)
• Grandmaster Clock mode (GM)
• PTP profiles for: SMPTE 2059-2 (video/audio), AES67 (Audio), AES-R16-2016 (Interoperability)
• Single-step PTP to AV endpoints
• Single-step/ two-step to the GrandMaste

• Teperatura otoczenia podczas pracy: 0° - 50°C
• Wilgotność otoczenia podczas pracy: 90% wilgotności względnej, bez kondensacji
• Temperatura przechowywania: - 20° - 70°C
• Wilgotność przechowywania: 95% wilgotności względnej, bez kondensacji

• CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014,
• Class A, EN 61000-3-3:2013, EN 55024:2010
• VCCI : VCCI-CISPR 32:2016, Class A
• RCM: AS/NZS CISPR 32:2013 Class A
• CCC: GB4943.1-2011
  YD/T993-1998
  GB/T9254-2008 (Class A)
• FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014
• ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014
• BSMI: CNS 13438 Class A
• CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
• UL listed (UL 1950)/cUL IEC 950/EN 60950
• CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
• RCM (AS/NZS) 60950.1:2015
• CCC (China Compulsory Certificate): GB4943.1-2011
  YD/T993-1998
  GB/T9254-2008 (Class A)
• BSMI: CNS 14336-1

• M4350-16V4C (VSM4320C)
• Przewód zasilający
• Kabel USB konsoli typu C
• Standardowy zestaw wsporników do montażu w szafie typu Rack
• Zestaw dłuższych wsporników do montażu wpuszczanego
• 4 x Gumowe podnóżki do montażu na blacie stołu
• Podręcznik instalacji

440 x 43.2 x 400 mm

Porty zarządzania:

• RJ-45
• Port konsolowy USB-C
• 2 x USB-A
